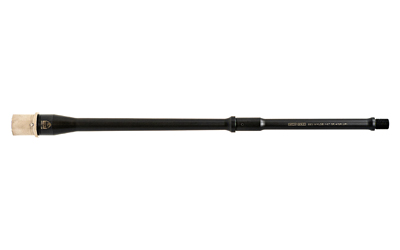

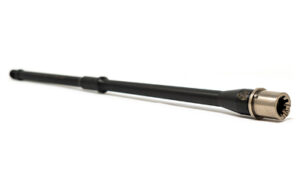

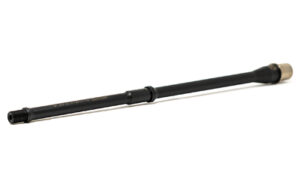

The Faxon Match Series 16-inch .223 Wylde Pencil Barrel (brand part no. 15BW8M16NPQ-5R-NP3) is machined in-house from gun-barrel-quality 416-R bar stock and cut with Faxon’s 5R rifling, a hybrid pattern that reduces bullet jacket deformation for better velocity retention and easier cleaning. Faxon chambers the Match Series in .223 Wylde, a hybrid chamber built to take full advantage of the 5R rifling for tighter accuracy while still safely firing 5.56 NATO ammunition. Every barrel is individually magnetic-particle inspected before it ships, then Nitride treated inside and out to lock in the bore and extend barrel life. The slim Pencil profile keeps weight down on a lightweight carbine or precision-oriented build.

Key Specifications

• Machined from 416-R stainless steel bar stock.
• Cut with Faxon’s 5R rifling, reducing bullet jacket deformation for better velocity and easier cleaning.
• Chambered in .223 Wylde to pair with the 5R rifling for improved accuracy.
• Individually magnetic-particle inspected (MPI) before shipping.
• Nitride treated inside and out for corrosion resistance and longer barrel life.
• Extension is coated in Nickel Teflon for dry lubricity and corrosion resistance.
• Nickel Teflon coating tightens the fit between the extension and the upper receiver.
• Overall length of 16 inches.
• 1:8 twist rate stabilizes a wide range of .223/5.56 bullet weights.
• Slim Pencil profile keeps weight forward-light on the build.

Frequently Asked Questions

What chamber does this barrel use? A .223 Wylde hybrid chamber, matched to the 5R rifling for improved accuracy while remaining safe with 5.56 NATO ammunition.

What twist rate does it use? 1:8, a versatile rate that stabilizes a wide range of .223/5.56 bullet weights.

Is this barrel individually tested? Yes, every Match Series barrel is individually magnetic-particle inspected before shipping.

Buy the Faxon Match Series 16-inch .223 Wylde Pencil Barrel

Drop a proven, individually tested match barrel onto your next lightweight build. Browse more AR15 barrels from Faxon Firearms and order it from our Lubbock, Texas gun shop for fast, insured shipping.
