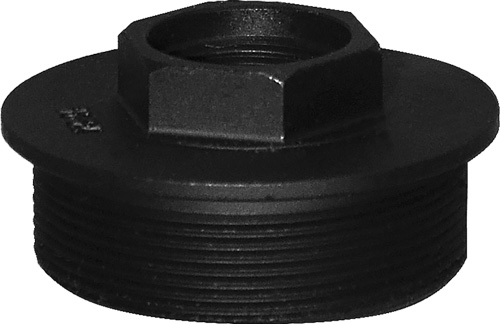

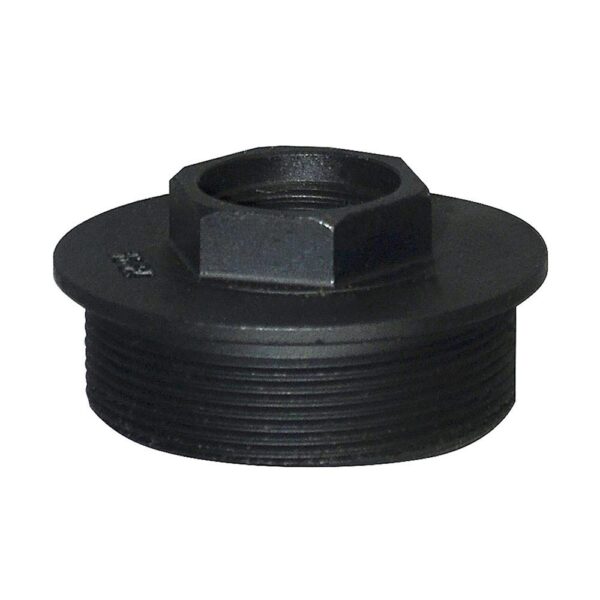

The YHM HUB direct thread mount in 1/2×28 converts a HUB-compatible suppressor to direct thread for barrels with the most common 5.56 and rimfire thread (YHM part no. YHM-2189-28). To install it, remove the existing mount from the suppressor, thread this mount into the 1.375×24 HUB threads with a 3/4-inch open-end wrench, then thread the suppressor onto the barrel. Yankee Hill Machine machines it from heat-treated 17-4 PH stainless steel and finishes it in black oxide. It is only 0.3 inches long and weighs 1.7 ounces, so it adds almost nothing to the overall length. It is a clean way to dedicate a HUB can to a 1/2×28 host.

Key Specifications

• The barrel thread is 1/2×28, standard on most 5.56 and many rimfire barrels.
• The suppressor side uses 1.375×24 HUB mounting threads, the industry-standard rear interface.
• Material is heat-treated 17-4 PH stainless steel, a hard, corrosion-resistant alloy.
• The finish is black oxide, matching most suppressor bodies.
• Weight is 1.7 ounces, light enough to leave the rifle’s balance alone.
• Length is 0.3 inches, keeping the suppressed rifle as short as possible.
• Installation takes a 3/4-inch open-end wrench, no special tools.
• It is a direct-thread conversion that replaces the suppressor’s existing mount.
• It works with HUB-compatible suppressors that use the 1.375×24 rear thread.

Frequently Asked Questions

How do I install it? Remove the existing mount from the suppressor, thread this mount on with a 3/4-inch open-end wrench, then thread the suppressor onto your barrel.

Will it work with my suppressor? It fits HUB-compatible suppressors, meaning cans that use the 1.375×24 rear mounting thread.

Is it available in other threads? Yes. YHM makes this mount in a range of pitches, including 5/8×24, 1/2×36, .578×28 and several metric threads, so choose the one that matches your barrel.

Buy the YHM HUB Direct Thread Mount, 1/2×28, Black Oxide

A direct-thread mount is the shortest, lightest way to hang a HUB suppressor on a barrel that rarely goes without it. Order it from our Lubbock, Texas gun shop for fast direct shipping, and shop our Class 3 parts and accessories for other mounts.
