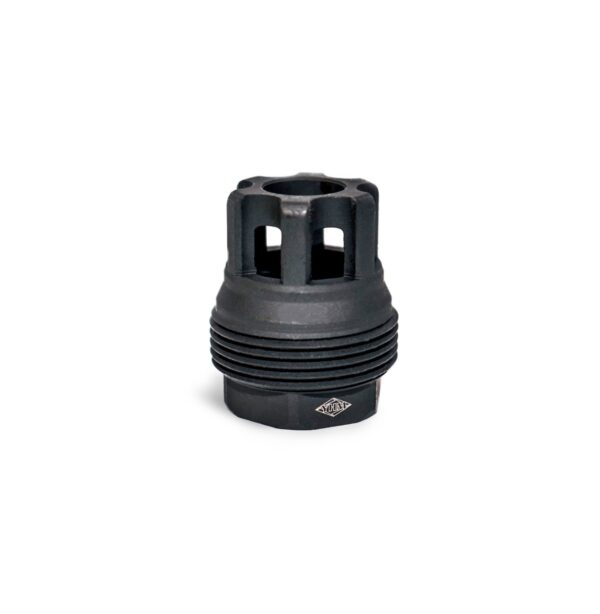

The Yankee Hill Machine sRx Mini QD Muzzle Brake 5/8×24 (brand part no. YHM-4401-MB-24) is the 5/8×24 version of YHM’s shortest sRx quick-detach muzzle device. It is meant for hosts with a 5/8×24 muzzle thread and it mounts a suppressor through the sRx taper interface. The body is only 1.1 inches long, so it adds little length or weight. Yankee Hill built the sRx line around a low profile and easy use, and each piece is made in the USA.

Key Specifications

• The muzzle thread is 5/8×24, so it screws onto barrels threaded to that common pitch.
• The device is 1.1 inches long, keeping the added length short.
• It adds only .475-inch to the barrel on barrels with .6-inch threads, according to Yankee Hill.
• The diameter is .9375-inch, a slim profile that stays close to the barrel line.
• It weighs just 1.024 ounces, light enough to leave on a rifle that rarely wears a suppressor.
• The material is 4140 steel, a tough alloy steel suited to muzzle devices.
• The finish is black, which matches typical rifle hardware.
• The bore opening is sized for 9mm (.390-inch) and smaller calibers, per the maker.
• The mount is timeless, so it needs no shim or clocking to the barrel.
• A taper in front of the threads gives consistent mounting, and there are no moving parts.

Frequently Asked Questions

What thread does this brake fit? This listing is the 5/8×24 version. Yankee Hill also makes the sRx Mini Muzzle Brake in 1/2×28, so check your muzzle thread before you order.

What does it mount to? It is a quick-detach mount for the sRx system and must be paired with the sRx adapter (part no. YHM-4400). That adapter fits suppressors with industry-standard 1-3/8×24 HUB threads.

Is the brake timed to the barrel? No. Yankee Hill describes the sRx design as timeless, so no shim or timing is required.

Buy the Yankee Hill Machine sRx Mini QD Muzzle Brake 5/8×24

If you want a short, light 5/8×24 muzzle device that can take a suppressor when you want one, the Mini sRx brake is the compact way to do it. Order it from our Lubbock, Texas gun shop for fast, insured shipping, and see more Class 3 parts and accessories while you are here.
