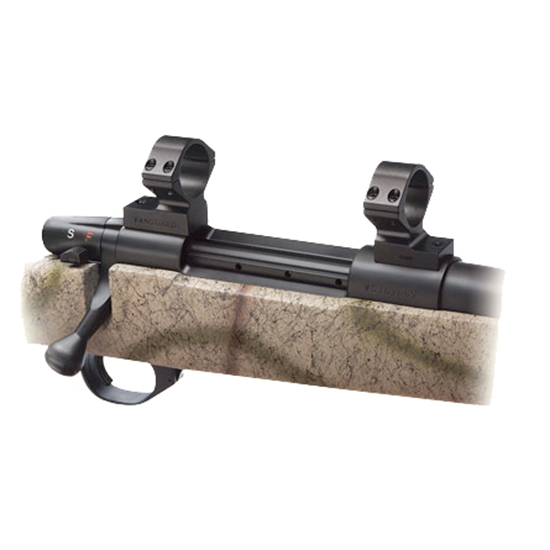

The Talley One-Piece Scope Mount for the Weatherby Mark V Standard 6-Lug action, medium height with 1-inch rings (part no. TRBVLAS1), builds the rings and base into a single CNC-machined unit for the non-magnum Mark V. Talley makes it in the USA from lightweight aircraft-grade aluminum, and the integrated design removes the out-of-alignment or loose connection that can creep into a two-piece ring and base setup. Medium height gives moderate clearance above the receiver, and the 1-inch rings match scopes with a 1-inch main tube. It is a clean, light way to mount a scope on a hunting rifle with no lapping required.

Key Specifications

• It fits the Weatherby Mark V Standard (non-magnum) 6-lug action, so it is not the mount for 9-lug magnum receivers.
• The rings and base are one integrated one-piece design, which keeps the ring-to-base interface from shifting out of alignment.
• The rings are sized for a 1-inch scope main tube, so confirm your scope’s tube diameter before ordering.
• Ring height is medium, .605 inch at the rear and .545 inch at the front, measured from the top of the receiver to the bottom of the scope tube.
• It is CNC machined from aircraft-grade aluminum to tight tolerances for a rigid, lightweight mounting platform.
• The set weighs 2.3 ounces, adding little to a lightweight hunting rifle.
• Hole spacing is .860 inch at the front and .600 inch at the rear.
• Mounting screws and a T-15 wrench are included, using 6-48 screws, so the hardware needed to install it is in the box.
• The mount is made in America by Talley Manufacturing.
• It is sold in pairs as a front and rear mount, and Talley states it requires no lapping.

Frequently Asked Questions

Does this mount fit the Mark V magnum 9-lug action? No. It is made for the Mark V Standard (non-magnum) 6-lug action, and Talley lists a separate mount for 9-lug magnum receivers.

What scope tube size does it fit? The rings are sized for a 1-inch scope main tube.

Does the hardware come with it? Yes. Mounting screws (6-48) and a T-15 wrench are included, and lapping is not required.
