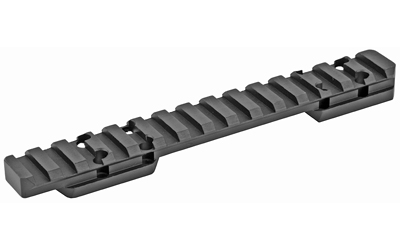

The Talley Browning X-Bolt Short Action Picatinny Base is a one-piece 20 MOA rail that mounts to the receiver of a Browning X-Bolt short action rifle (Talley part no. P0M252735). It is machined from high-grade lightweight aluminum and hard-coat anodized for durability. The top follows the MIL-STD-1913 Picatinny specification, so standard rings and mounts clamp straight on. Mounting screws and a wrench are included, which means you can install it without sourcing hardware. Talley makes it in the USA for shooters who want a rigid, repeatable scope platform with added elevation built in.

Key Specifications

• It is made for Browning X-Bolt short action rifles and mounts directly to the receiver.
• The rail has a 20 MOA slope, which adds elevation travel for long range shooting.
• Overall length is 6.155 inches, the short action rail length.
• The rail weighs 2.2 ounces, which adds very little to the rifle.
• Rear height is .537 inch and front height is .437 inch measured from the top of the action to the top of the rail, which matters when choosing ring height.
• Hole spacing, center to center, is .700, 2.942 and .700 inches between holes 1 and 2, 2 and 3, and 3 and 4.
• The base is machined from high-grade lightweight aircraft aluminum, which saves weight while staying rigid.
• The finish is hard-coat anodizing, which protects the rail against wear.
• The top is cut to the MIL-STD-1913 Picatinny specification, so Picatinny rings and mounts fit.
• Included are 6-48 mounting screws and a T15 wrench, so the base installs without extra hardware.

Frequently Asked Questions

Does this fit a long action or magnum X-Bolt? No. This listing is the short action base, 6.155 inches long. Talley makes long, magnum and super short action bases for the X-Bolt as separate options.

Does it fit the X-Bolt 2? Talley notes that the X-Bolt 2 uses only Magnum and Short action lengths, so the short action base is the one for a short action X-Bolt 2. Check your action length against the Talley dimension chart before ordering.

What comes in the package? The base includes 6-48 mounting screws and a T15 wrench.
