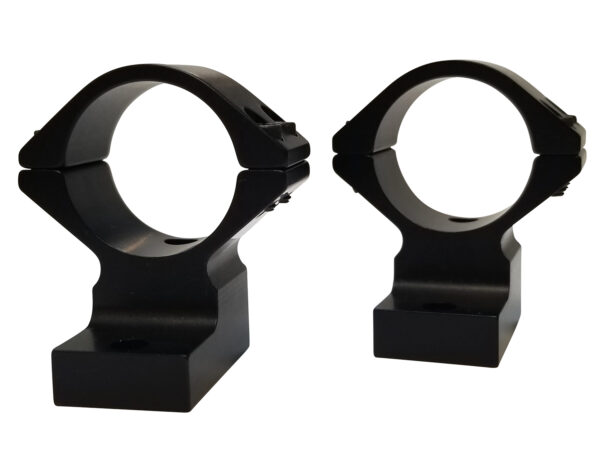

The Talley scope mount and ring combo for Henry lever-action rifles puts a 30mm scope low on the receiver in a single, integrated piece (Talley part no. 730336). Instead of a separate base and a pair of rings that have to be lined up, Talley machines the ring and base as one unit from aircraft-grade aluminum, which removes the chance of an out-of-alignment fit. This low version is built for Henry models H009, H010, H014, H018, H023 and H024. It suits hunters who want a lever gun that stays quick to carry and quick to shoulder with a modern scope on top.

Key Specifications

• The scope tube diameter is 30mm, so it takes riflescopes with a 30mm main tube.
• Ring height is Low at .520 inch front and rear, measured from the top of the receiver to the bottom of the scope tube.
• It fits Henry lever-action models H009, H010, H014, H018, H023 and H024, the rifles Talley lists for this mount.
• The design is a one-piece integrated ring and base, which avoids the alignment problems of a two-piece ring and base setup.
• Construction is fully CNC-machined, aircraft-grade aluminum, which keeps the mount strong while holding down weight.
• The mount attaches to the receiver, so the rings sit directly on the action rather than on a separate rail.
• Hole spacing is .500 inch at both the front and the rear, measured center to center.
• It is sold in a pair, giving you the front and rear halves needed to hold the scope.
• Mounting hardware is 8-40 screws with a T-15 wrench, so the installation tool comes in the package.
• The mount is made in America by Talley Manufacturing and needs no lapping before use.

Frequently Asked Questions

Which Henry rifles does this Talley mount fit? Talley lists the Henry lever-action models H009, H010, H014, H018, H023 and H024 for this mount. Check your rifle’s model number against that list before ordering.

Do the rings need to be lapped? No. Talley designs the integrated ring and base so that lapping is not required, and the mount is ready to install out of the package.

What size scope does it hold? This version takes scopes with a 30mm main tube and sits at the Low height, .520 inch from the receiver to the bottom of the scope tube.

Buy the Talley Scope Mount/Ring Combo for Henry Lever-Action Rifles, 30mm Low

A low, one-piece mount keeps a scope close to the line of the barrel and cuts down on the extra bulk a two-piece system adds to a lever gun. Order it from our Lubbock, Texas gun shop for fast, insured shipping, and browse the rest of our scope bases while you are here.
