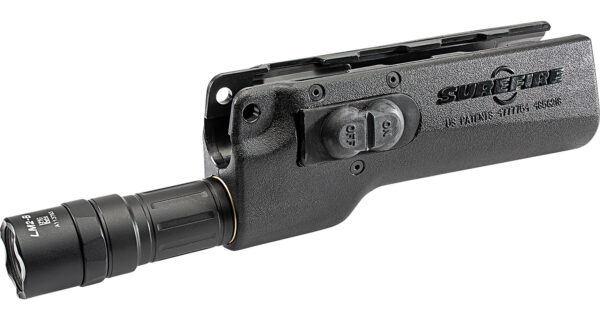

The SureFire 628LMF-B is a dedicated forend WeaponLight that replaces the original forend on the Heckler & Koch MP5, HK53 and HK94 (SureFire part no. 628LMF-B). SureFire builds it around a 6-volt, two-cell design that makes 1,000 lumens, with a LED emitter focused by a TIR lens for close to medium range. Switching is built into the forend, so the light stays under your normal firing grip. The 123A lithium batteries are included.

Key Specifications

• Output is 1,000 lumens with a peak beam intensity of 10,600 candela.
• Runtime is 1.25 hours, and the beam reaches 200 meters.
• Power is two 123A lithium batteries, included.
• Switching is a momentary-on pressure pad on the right side of the forend and a constant-on rocker on the left.
• The LED emitter is focused by a TIR lens for a beam tuned to close and medium-range use.
• It replaces the original forend on the H&K MP5, HK53 and HK94.
• Construction is polymer and aluminum, with a Mil-Spec hard anodized bezel and a tempered window sealed with O-rings.
• Weight with batteries is 17.6 ounces, and the bezel diameter is 1.125 inches.

Frequently Asked Questions

Which firearms does it fit? SureFire lists the 628LMF-B as a dedicated forend for the Heckler & Koch MP5, HK53 and HK94.

How do I turn it on? A momentary-on pressure pad sits on the right side of the forend and a constant-on rocker switch is on the left, so you can control the light without changing your grip.

What batteries does it take? It uses two 123A lithium batteries, which are included.

Buy the SureFire 628LMF-B Forend WeaponLight

For an MP5 family weapon, a light built into the forend keeps the profile clean and the controls where your hand already is. Order it from our Lubbock, Texas gun shop for fast, insured shipping, and see more weapon lights while you are here.
