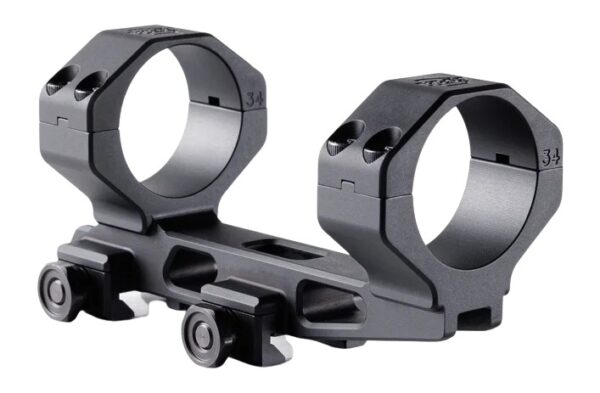

The RPM DC-34150 Delta 34mm Cantilever Mount (brand part no. DC-34150) is built to cut weight and keep a clean profile, skipping the integrated bubble level found on RPM’s Bravo series for shooters who don’t need it. Ruffs Precision machines the Delta series from 6061-T6 aluminum with a 303 stainless steel cross bolt and nut and an integrated recoil lug that locks the mount against the rail under recoil, while an alignment lug keeps the cap and base registered during installation. The 1.50-inch height to the center of the ring/optic gives forward mounting clearance for a large-objective scope on an AR-platform rifle. Among our scope bases, the DC-34150 suits shooters who want the lightest cantilever mount in RPM’s lineup for a 34mm-tube optic.

Key Specifications

• The mount fits a 34mm scope tube.
• The height to the center of the ring/optic is 1.50 inches.
• The design has no integrated bubble level, cutting weight versus the Bravo series.
• An integrated recoil lug locks the mount against the rail under recoil.
• The construction is 6061-T6 aluminum ring body and cap.
• The cross bolt is 303 stainless steel, 1/2-inch.
• The recommended cap screw torque is 18 in-lbs, and the cross bolt torque is 45 in-lbs.
• The weight is 5.8 ounces.
• The mount is made in the USA.

Frequently Asked Questions

Does this mount have a bubble level? No, the Delta series drops the level found on RPM’s Bravo mounts to save weight.

What does the cantilever design do? It offsets the ring forward of the rail attachment point, giving a large-objective scope the clearance it needs on an AR-platform rifle.

What torque should I use to install this? RPM recommends 18 in-lbs on the cap screws and 45 in-lbs on the cross bolt.

Buy the RPM DC-34150 Delta Cantilever Mount

A lighter, no-frills 34mm cantilever mount, the DC-34150 gives you objective clearance without the added weight of a built-in level. Order it from our Lubbock, Texas gun shop for fast shipping.
