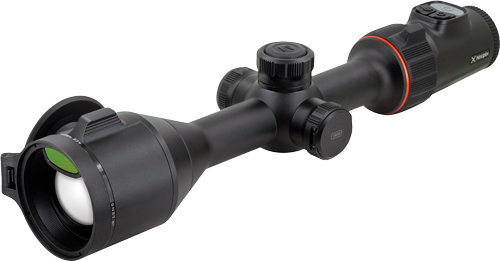

The Nocpix ACE H50R Thermal Weapon Sight (brand part no. ACE-H50R) pairs a 640×512 thermal sensor with a 50mm germanium objective lens and an integrated laser rangefinder, built by IRay USA to feel like a traditional day optic while adding thermal and rangefinding capability. The Vision+ system pairs a 15 mK NETD sensor with a 2560×2560 round AMOLED display, and a 1-3x ocular magnifier lets shooters adjust magnification of that display without any reticle shift or digital zoom. The rangefinder itself reaches out to 1,300 yards and sits inside the objective lens for better horizontal alignment with the thermal optic instead of adding external bulk. An internal USB-C charging battery works alongside a removable 18650-style rechargeable battery, so shooters can hot-swap power in the field and keep running. Mounted with standard 30mm rings on bolt-action or semi-automatic rifles, the ACE H50R favors hunters and shooters who want an all-in-one thermal, rangefinding, and ballistic-calculating optic.

Key Specifications

• The thermal sensor resolution is 640×512.
• The objective lens measures 50mm, made from germanium.
• Thermal sensitivity is rated at 15 mK NETD.
• The display is a 2560×2560 round AMOLED panel.
• A 1-3x ocular magnifier adjusts display magnification without reticle shift.
• The integrated laser rangefinder reaches out to 1,300 yards.
• Powered by a hot-swappable 18650-style rechargeable battery plus internal USB-C charging.
• Mounts to standard 30mm rings on bolt-action or semi-automatic rifles.
• Includes a ballistic calculator that uses rangefinder input and a customized cartridge profile.
• The overall length is approximately 17.85 inches.

Frequently Asked Questions

Does the ACE H50R include a rangefinder? Yes, a 1,300-yard capable laser rangefinder is built directly into the 50mm objective lens.

What rifles is it compatible with? Bolt-action or semi-automatic rifles using standard 30mm mounts and rings.

Can the battery be swapped in the field? Yes, the removable 18650-style battery can be hot-swapped while the internal USB-C battery keeps the unit running.

Buy the Nocpix ACE H50R Thermal Weapon Sight

An all-in-one thermal optic with a built-in rangefinder and ballistic calculator is exactly what the ACE H50R delivers. Order it from our Lubbock, Texas gun shop for fast, insured shipping.
