Description

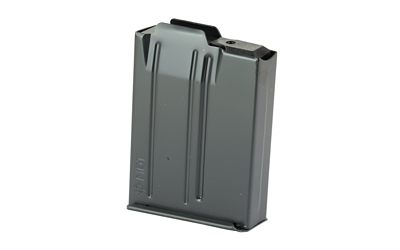

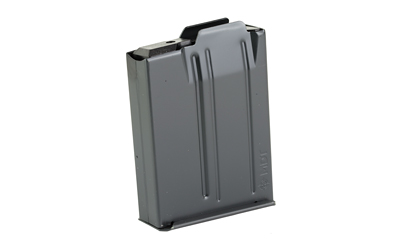

The MDT AICS 10-Round .308 Win/6.5 Creedmoor Metal Magazine is a steel AICS-pattern magazine in the standard version with a front binder plate (MDT part no. 102013-BLK). MDT forms it from high-strength steel, nitrides it, and finishes it inside and out with Cerakote Elite for corrosion and friction resistance. Its Double Stack to Single Feed transition makes the 10-round magazine about three-quarters of an inch shorter than a standard AICS 10-round, which helps when you shoot prone. It is built for short-action precision rifles, and it fits any AICS-pattern bottom metal or chassis.

Key Specifications

  • Capacity is 10 rounds in an AICS-pattern magazine.
  • Chamberings include .308 Win/7.62×51 NATO and 6.5 Creedmoor, along with 6mm Creedmoor, .243 Win, .260 Rem and 7mm-08.
  • The body is high-strength steel that is nitrided, a hard surface treatment that resists wear.
  • The finish is Cerakote Elite inside and out, which resists corrosion and reduces friction.
  • Outside length is 3.055 inches, the measurement to check against your magazine well.
  • Maximum cartridge overall length with the binder plate is 2.870 inches.
  • Rear height is 3.90 inches, and the magazine is about 3/4 inch shorter than a standard AICS 10-round.
  • The Double Stack to Single Feed transition makes mag changes easier when you shoot prone.
  • Two internal ribs reduce friction between the cartridges and the body and smooth the feed from double stack to single feed.
  • The front binder plate holds the cartridges back from the front of the magazine and guides them past the bottom of the feed ramp.

Frequently Asked Questions

Will this magazine fit my rifle or chassis? MDT says the magazines with front binder plates fit all rifles equipped with AICS-pattern bottom metal or chassis systems.

Does it work with the Howa 1500 short action? MDT says these magazines need slight modification to function with Howa 1500 short-action rifles.

What is the longest cartridge it will take? With the binder plate, the maximum cartridge overall length is 2.870 inches. The version without the plate allows 2.960 inches.

Buy the MDT AICS 10-Round Metal Magazine with Binder Plate

Short-action precision rifles run best on a magazine that feeds smoothly and sits low for prone shooting, and this MDT design does both. See more from MDT or browse our rifle magazines. Order it from our Lubbock, Texas gun shop for fast, insured shipping.

Additional Information

UPC

990482720056

Manufacturer

MDT

Manufacturer Part Number

102013BLK

Caliber/Gauge

6.5mm Creedmoor

Capacity

10

Model

AICS Magazine

Product Type

Magazine
