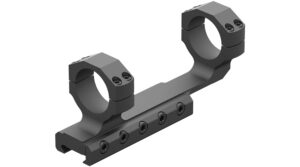

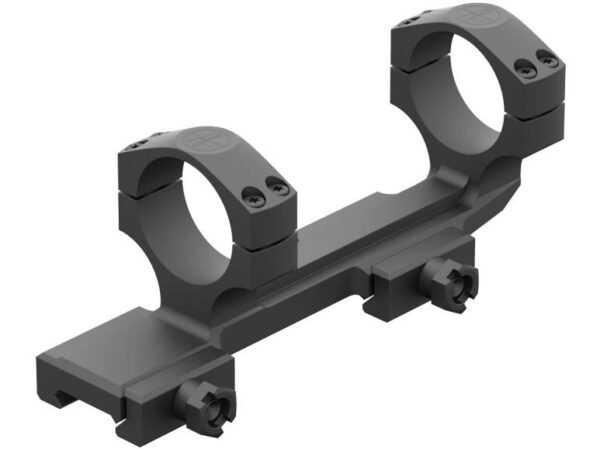

The Leupold Mark IMS 30mm 20 MOA scope mount is an integral mounting system for AR-style rifles, finished in matte black (Leupold part no. 182872). Its aluminum cantilever design mounts directly to a MIL-spec 1913 Picatinny rail and pushes the scope forward and up. That solves the two common problems of mounting a standard riflescope on an AR, scope height and eye relief, without risers or a short eye relief optic. It is one of the 30mm versions in Leupold’s IMS family.

Key Specifications

• The rings are 30 mm in diameter, matching 30mm main tube scopes.
• The mount is aluminum, which keeps weight down.
• It attaches directly to a MIL-spec 1913 Picatinny rail on AR platform rifles.
• The cantilever design raises the scope and pushes it forward, solving the scope height and eye relief problems of a standard scope on an AR.
• Ring height is 1.5 inches above the rail.
• The mount is 6.01 inches long.
• It weighs 7.1 ounces.
• The length within the rings is 3.34 inches, so check it against your scope’s tube.
• The keeper clamp torque is 65 inch-pounds.
• The ring top screw torque is 28 inch-pounds.

Frequently Asked Questions

What rifles does the Mark IMS fit? Leupold lists it for AR platform rifles and says the mount attaches directly to a MIL-spec 1913 Picatinny rail.

What problem does it solve? Leupold says the IMS design eliminates the two most common problems with standard scopes on AR-style rifles, scope height and eye relief, without needing risers.

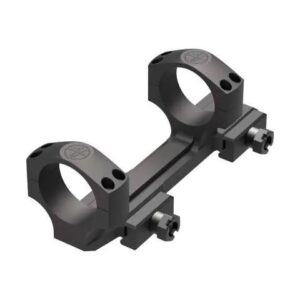

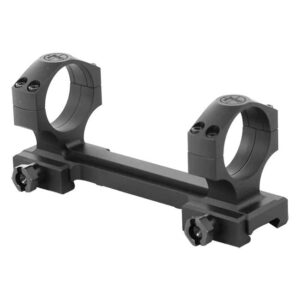

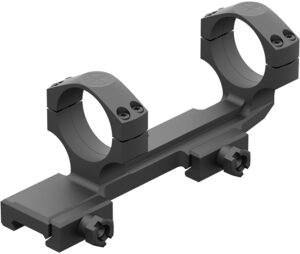

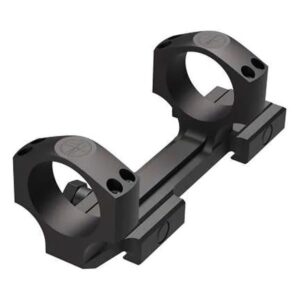

What scope tube size does it fit? This version has 30 mm rings, for scopes with a 30mm main tube. Leupold makes other IMS versions for 34mm and 35mm tubes.
