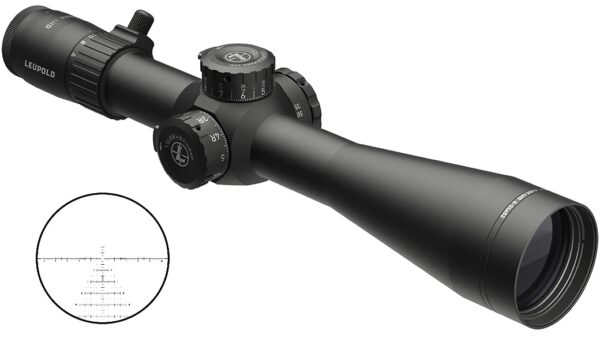

The Leupold Mark 4HD 6-24x52mm FFP PR2-MIL Riflescope (Leupold part no. 183823) is a first focal plane scope with a 34mm maintube and a non-illuminated PR2-Mil reticle. Leupold fits it with M5C3 ZeroLock dials, a locking elevation turret and a side focus knob that clears parallax down to 25 yards. Because the reticle sits in the first focal plane, its mil marks measure the same at 6x or 24x, which makes ranging and holdovers consistent. It is an uncluttered long-range scope for rifles that do not need illumination.

Key Specifications

• Magnification runs 6-24x, a 4:1 zoom ratio that covers close and long-range targets.
• The objective lens is 52mm and the maintube is 34mm.
• The reticle is the PR2-Mil in the first focal plane, so its mil marks stay accurate at every magnification.
• The reticle is not illuminated, a simpler design with no battery to manage.
• Elevation uses the M5C3 locking dial at 0.1 Mil per click, 10 Mil per revolution and 36 Mil of total range.
• Windage uses the ZeroLock system at 0.1 Mil per click, with 18 Mil of total range.
• Side focus parallax adjustment is parallax free down to 25 yards.
• Eye relief is 3.8 inches at low power and 4 inches at high power.
• Field of view is 17.3 feet at 6x and 4.7 feet at 24x at 100 yards.
• Total length is 14.6 inches and weight is 27.5 ounces.

Frequently Asked Questions

Is this scope illuminated? No. The PR2-Mil reticle in this model is not illuminated. Leupold also builds illuminated versions of the Mark 4HD.

What is the maintube diameter? The maintube is 34mm, so it needs 34mm rings.

How much elevation does it have? Elevation travel is 36 Mil in total at 0.1 Mil per click, with 10 Mil per revolution and a locking M5C3 dial.
