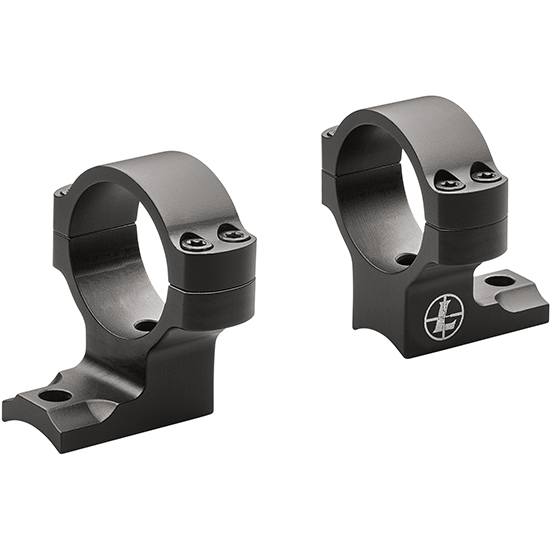

The Leupold BackCountry 30mm Medium Rings, Browning X-Bolt is a two-piece, matte-finish ringmount made for the Browning X-Bolt (Leupold part no. 171122). Leupold machines the BackCountry series from 7075-T6 aluminum and calls it among its lightest and most rugged mounts. These rings attach directly to the receiver and accept any riflescope with a 30mm main tube. The medium ring height of 1.0 inch suits a 30mm scope on a hunting rifle. At 2.8 ounces for the set, it adds very little to a rifle that gets carried all day.

Key Specifications

• The ring height style is Medium, measured at 1.0 inches, which sets how high the scope sits over the receiver.
• The ring diameter is 30 mm, sized for any riflescope with a 30mm main tube.
• The rings are machined from 7075-T6 aluminum, which Leupold calls among its lightest and most rugged mounts.
• The set weighs 2.8 ounces, which keeps a hunting rifle light for a long carry.
• The finish is matte, a low-reflection surface for field use.
• The mounts attach directly to the Browning X-Bolt, so no separate base is needed.
• The design is a two-piece ringmount set, with one ring for the front of the receiver and one for the rear.
• The base and receiver screw torque is 22 in-lbs (18 in-lbs on the front two screws), a figure Leupold publishes for a repeatable installation.
• The ring top screw torque is 28 in-lbs, the figure to use when closing the rings around the scope tube.

Frequently Asked Questions

Will this fit my Browning X-Bolt? These BackCountry ringmounts attach directly to a Browning X-Bolt receiver and take any riflescope with a 30mm main tube, at the medium ring height of 1.0 inch.

Is the torque the same on every base screw? No. Leupold lists 22 in-lbs for the base and receiver screws, with the front two screws set to 18 in-lbs.

What torque settings does Leupold list? Base and receiver screws go to 22 in-lbs (18 in-lbs on the front two screws), and the ring top screws go to 28 in-lbs.

Buy the Leupold BackCountry 30mm Medium Rings, Browning X-Bolt

A Browning X-Bolt wearing a 30mm scope gets a receiver-specific, lightweight set here. Order it from our Lubbock, Texas gun shop and browse more scope rings while you are there.
