Description

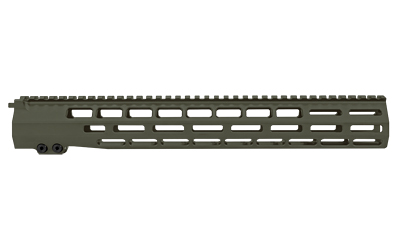

The Grey Ghost Precision AR-10 15-Inch M-LOK Handguard in Olive Drab Cerakote (brand part no. GGP30815HGOD) is the same handguard design GGP fits as standard on its MKII rifles, offered for builders. It is extruded from 6061-T6 aircraft-grade aluminum and has a full-length Picatinny top rail with engraved T-markings, plus M-LOK slots for accessories. A non-proprietary barrel nut that needs no timing keeps installation simple, and left and right index tabs stop the handguard from twisting under use. It suits AR-10 builds that need a long rail for optics, lights and accessories.

Key Specifications

  • The length is 15 inches, with an inside diameter of 1.380 inches.
  • The color is Olive Drab Cerakote over a 6061-T6 aluminum extrusion.
  • A full-length Picatinny top rail carries engraved numerical T-markings.
  • M-LOK slots sit at the 3, 6 and 9 o’clock positions, with forward M-LOK slots at 1 and 11 o’clock.
  • A non-proprietary barrel nut and two fastening screws are included, and the nut does not require timing.
  • Left and right index tabs keep the handguard from twisting under use.
  • The handguard weighs 1.025 pounds and works with all forged upper receivers and most billet uppers.

Frequently Asked Questions

What torque does it need? GGP calls for the barrel nut at 65 ft lbs, with the two fastening screws at about 35 in lbs. A wrench is not included; the nut works with a standard armorer’s wrench.

Does it need timing? No. It uses a non-proprietary barrel nut that does not require timing, so you tighten the nut and slide the handguard flush to the upper receiver.

Will it fit my upper receiver? GGP says it is compatible with all forged upper receivers and most billet upper receivers.

Buy the Grey Ghost Precision AR-10 15-Inch M-LOK Handguard, Olive Drab Cerakote

Give your AR-10 a longer, stiffer rail. Order the Grey Ghost Precision handguard from our Lubbock, Texas gun shop for fast, insured shipping, and see more AR-10 stocks, forends and forearms for your build.

Additional Information

UPC

860006002060

Manufacturer

Grey Ghost Precision

Manufacturer Part Number

GGP30815HGOD

Product Type

Handguard

Model

Handguard
