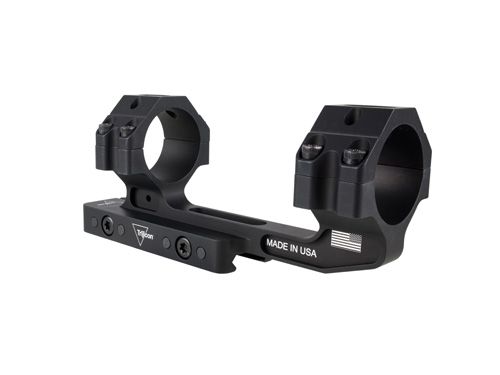

The Trijicon Cantilever Mount (model AC22055) is a 30mm cantilever mount standing 1.59 inches above the rail, with a flush mounting bolt configuration for a slimmer side profile, machined from Mil-Spec drop-test rated 6061-T6 aluminum.

Key Specifications

• Tube Diameter: 30mm
• Height Above Rail: 1.59 in.
• Objective Clearance: Fits optics with an objective lens up to 56mm
• Housing Material: 6061-T6 aluminum (Mil-Spec drop-test rated)
• Finish: Matte black anodized
• Torque Spec (Rail): Tighten to 30-38 in-lb
• Torque Spec (Ring Caps): 14-16 in-lb
• Compatibility: Fits any Mil-Spec or NATO Picatinny rail
• Origin: Made in the USA

Frequently Asked Questions

What torque spec does this mount’s hardware use?
Trijicon specs the rail bolts to 30-38 in-lb and the ring cap screws to 14-16 in-lb.

Does this 30mm cantilever mount fit large-objective scopes?
Yes, it’s rated for variable power optics with an objective lens up to 56mm.
