Description

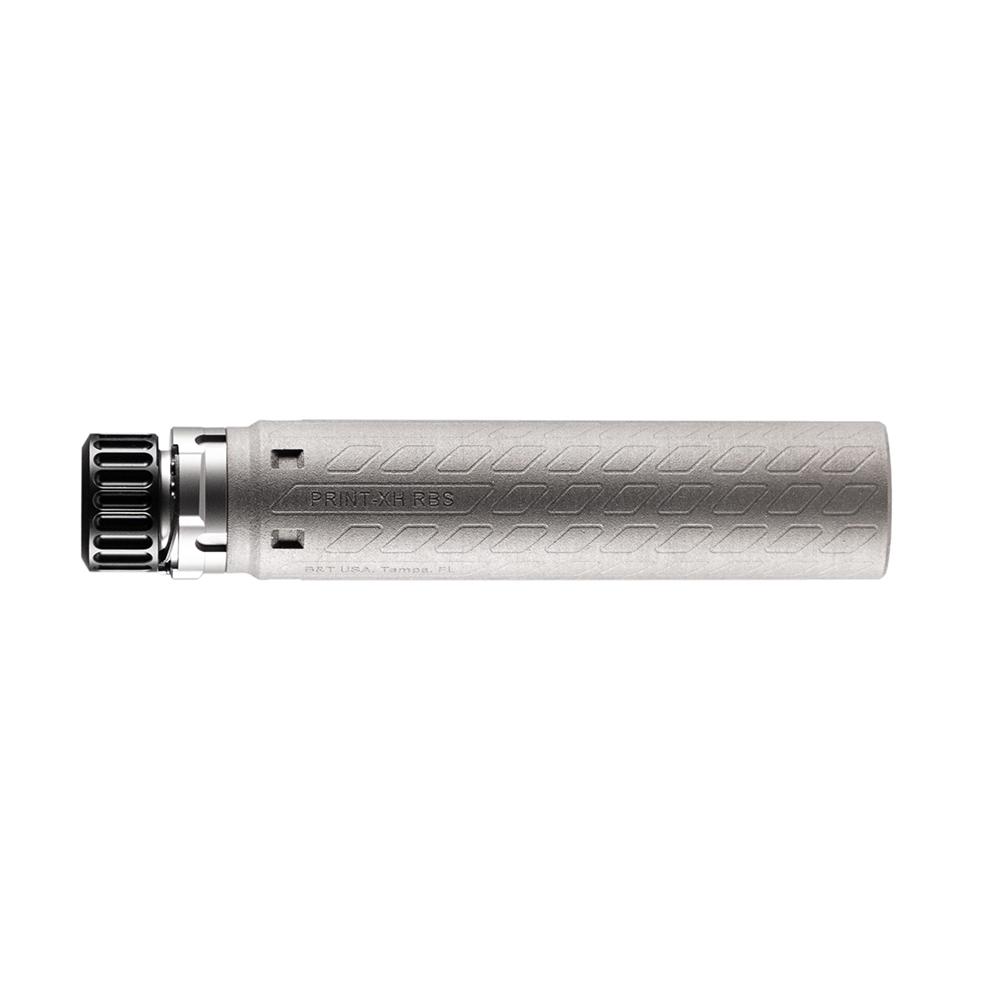

The B&T XH-556 5.56 suppressor (B&T part no. SD-556RBS-Ti) is a hybrid rifle can that pairs a 3D-printed titanium body with a 718 Inconel blast baffle. The titanium keeps the weight down to 10.5 ounces, while the Inconel insert takes the hottest gas and tames the flash that many reduced-backpressure cans struggle with. B&T’s Reduced Backpressure System holds bolt-speed increases under 2 percent, and a low-flash stainless steel endcap finishes the muzzle end. It is the full-length 7.1-inch model in the XH-556 line, with a RAID Taper Mount and muzzle device included. For a duty carbine or a 5.56 SBR that sees high round counts, it is built for the heat.

Key Specifications

  • The caliber rating is 5.56 NATO and .223 Rem, the AR-15’s two standard cartridges.
  • Weight is 10.5 ounces, light for a rifle can with an Inconel blast baffle.
  • Length is 7.1 inches, the full-size build in the XH-556 line.
  • The diameter is 1.75 inches, sized to clear standard AR handguards.
  • Materials are a titanium body with a 718 Inconel insert, low weight where the heat is lower and Inconel where it is hottest.
  • The finish is gray Type 2 anodizing, a durable surface for rifle use.
  • It includes a RAID Taper Mount and muzzle device, so no separate mount is needed.
  • Mounting is HUB interface compatible at 1.375×24 TPI, with wrench flats for removal.
  • B&T lists no barrel length restrictions and engineers it for full-auto use.
  • Testing included SOCOM burn-down cycles of 240 rounds repeated 95 times, more than 22,000 rounds in the final phase.

Frequently Asked Questions

How is this different from the XH-556 SC? This XH-556 is the full-length model at 7.1 inches and 10.5 ounces. The XH-556 SC is the subcompact at 5 inches and 8.6 ounces.

How much does it change bolt speed? B&T says the Reduced Backpressure System limits bolt-speed increase to under 2 percent and reports a negligible increase of about 1.9 percent on M4 carbines.

Do I need ATF approval to buy this? No. As of October 9, 2026, ATF no longer requires Form 4 approval, registration or a tax stamp for suppressors. It transfers on a Form 4473 with a background check through a Class 3 (SOT) dealer. State and local laws still apply.

Buy the B&T XH-556 5.56 Suppressor, Titanium/Inconel Hybrid, Gray

As of October 9, 2026, this suppressor transfers on a Form 4473 with a background check at your Class 3 (SOT) dealer, with no Form 4 or tax stamp; state and local laws still apply. Order through B&T‘s suppressors lineup and our Lubbock, Texas team will handle the transfer, and it ships fast to your Class 3 dealer.

Additional Information

UPC

840225717273

Manufacturer

B&T

Manufacturer Part Number

SD-556RBS-Ti

Caliber/Gauge

.223 REM/5.56 NATO

Model

XH556

Product Type

Suppressor

Shipping Weight

2.4

Thread Pattern

1.375"x24

ATF Type

Silencer
