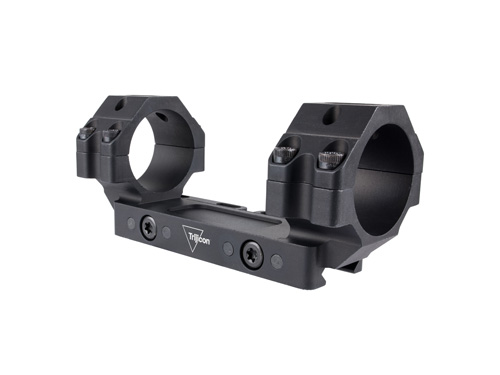

The Trijicon Bolt Action Mount (model AC22058) is a low-profile 30mm bolt action mount standing just 1.06 inches above the rail, with a flush mounting bolt configuration for a sleek side profile.

Key Specifications

• Tube Diameter: 30mm
• Height Above Rail: 1.06 in.
• Objective Clearance: Fits optics with an objective lens up to 42mm
• Housing Material: 6061-T6 aluminum (Mil-Spec drop-test rated)
• Finish: Matte black anodized
• Length: 4.74 in.
• Width: 1.95 in.
• Bolt Configuration: Flush-mount bolts for a sleek side profile
• Compatibility: Fits any Mil-Spec or NATO Picatinny rail
• Origin: Made in the USA

Frequently Asked Questions

Is 1.06in the lowest bolt action mount height Trijicon offers?
Among this mount family, 1.06 inches is the lowest height listed, suited to keeping a scope as close to the bore line as possible.

What torque should the rail bolts be set to?
Trijicon specs tightening the rail bolts to 30-38 in-lb.
