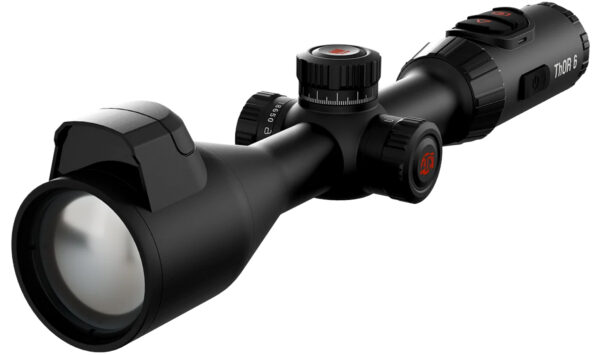

The ATN ThOR 6 Elite LRF thermal rifle scope, 640×512 with 3-24x magnification (ATN part no. TIWST6650LRF), is built on ATN’s 6th Generation thermal core with a built-in laser rangefinder. The ATN sensor pairs a 640×512 resolution with sensitivity of 15 mK or better and a 12 micron pixel pitch, and SharpIR AI image enhancement sharpens edges and contrast in real time. A ballistic calculator uses the rangefinder reading to adjust the reticle for range and angle. It is a long-range predator and varmint scope for hunters who want to identify and range targets in total darkness.

Key Specifications

• The thermal sensor resolution is 640×512, giving finer detail at higher zoom than lower-resolution cores.
• Thermal sensitivity is 15 mK NETD or better, so the scope can separate very small temperature differences.
• The pixel pitch is 12 microns, a fine sensor pitch that supports a sharp image.
• Magnification is 3-24x, a wide range for both scanning and identifying targets.
• The objective lens is 50mm, paired with a digital focus ring.
• The display is a 0.49-inch 1920×1080 OLED, a full-HD screen for a clear view of the thermal image.
• A built-in laser rangefinder reads distances up to 1,000 meters with plus or minus 1 meter accuracy and feeds the ballistic calculator.
• Power comes from two 18650 batteries for about 9 hours of continuous use, with the replaceable pair letting you carry a spare.
• The housing is magnesium alloy and the scope weighs 1.89 pounds, which keeps it balanced on the rifle.
• The scope is rated IP67 waterproof, so it is protected against water immersion.

Frequently Asked Questions

Does this scope have a built-in rangefinder? Yes. The LRF models include an integrated laser rangefinder that gives distance readings up to 1,000 meters and feeds a ballistic calculator that stores up to six custom profiles.

Can it record video? Yes. It records video and audio with an integrated microphone to 64 GB of internal storage, and Recoil Activated Video captures footage 10 seconds before and after the shot.

What do I need to mount it? ATN says it mounts with standard 30mm rings, which are not included, and it has a Max Recoil Rating of 6000 joules.

Buy the ATN ThOR 6 Elite LRF Thermal Rifle Scope, 640×512, 3-24x

The ThOR 6 Elite LRF puts a high-resolution thermal sensor, a rangefinder and a ballistic calculator into one scope. Order it from our Lubbock, Texas gun shop for fast, direct shipping, and see more thermal sights while you are here.
