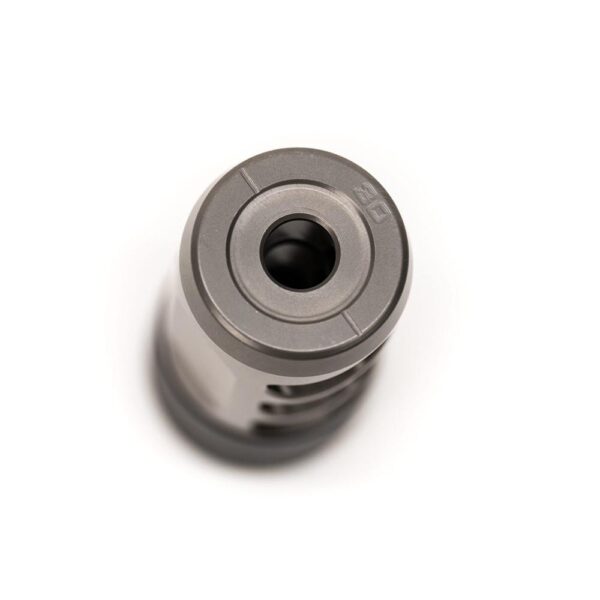

The Area 419 Hellfire Ti Self-Timing Muzzle Brake, .40 Caliber and Under, 5/8×24 (brand part no. 419HFTI-400-5824) is a titanium muzzle brake sized for larger hunting cartridges up to and including 450 Bushmaster. Area 419 CNC mills the main body in Ohio from Grade 5 6Al-4V titanium, bringing match-rifle-level construction to a brake built for hard-recoiling hunting calibers. A stainless steel collar backs up the titanium body for extra mounting strength and durability, and the brake’s self-timing design lets it index correctly every time it is torqued down. Weighing just a fraction more than the .30-caliber version, it delivers a meaningfully larger port diameter and more braking surface to handle the heavier recoil impulse of a .40-class cartridge.

Key Specifications

• Threaded 5/8×24, rated for cartridges up to and including 450 Bushmaster.
• Machined from Grade 5 6Al-4V titanium, CNC milled in Ohio for match-rifle-level construction.
• Backed by a stainless steel collar for greater mounting strength and durability.
• Uses a 1.1-inch port diameter, giving 27% more braking surface than the original Hellfire brake.
• Adds about 2.5 inches from the thread shoulder, roughly 1.9 inches to a barrel’s overall length once installed.
• Finished in gray titanium anodize to reduce glare in the field.
• Uses a flatter first port to reduce blast directed back toward the shooter.
• Features progressive upper port geometry to control muzzle flip during recoil.
• Mounts using Area 419’s patented Hellfire Mount system for repeatable, versatile installation.

Frequently Asked Questions

What cartridges is this brake rated for? It is built for cartridges up to and including 450 Bushmaster on a 5/8×24 thread pattern.

How much length does the brake add to my barrel? About 2.5 inches from the thread shoulder, which adds roughly 1.9 inches to the barrel’s overall length once installed.

Is this brake heavy on the muzzle end? No, the titanium body and collar are engineered to be significantly lighter than Area 419’s original Hellfire brake.

Buy the Area 419 Hellfire Ti Self-Timing Muzzle Brake, .40 Cal

Bring a hard-hitting .40-class hunting rifle under control without loading up the muzzle with excess weight. Browse Schaefer Defense’s rifle parts selection and order from our Lubbock, Texas gun shop for fast shipping.
