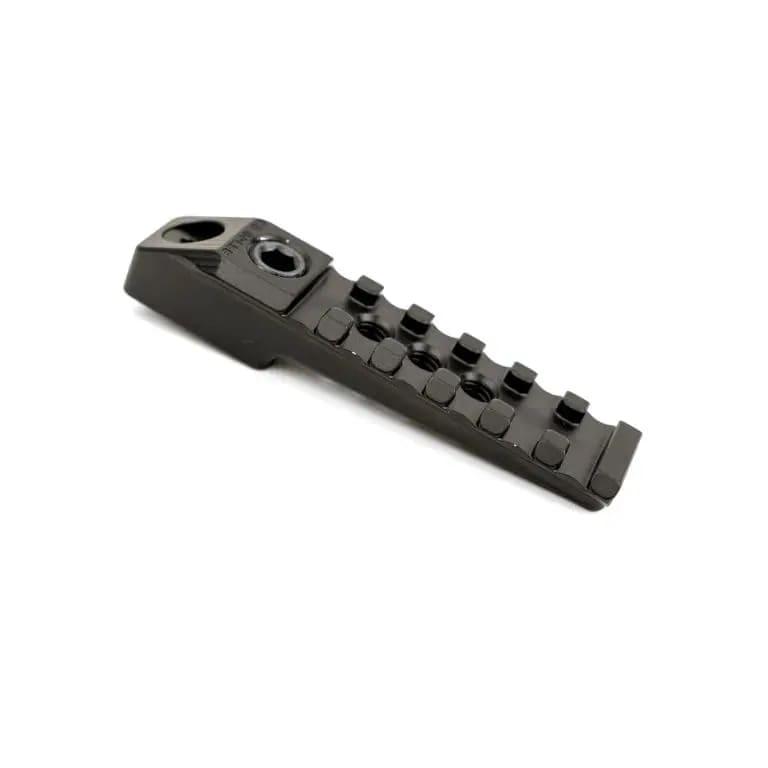

The Area 419 low height diving board (brand part no. 419-TSM-LDB) adds a top rail to the Tactical One-Piece Scope Mount. Area 419 attaches it through a patent-pending dual taper mounting point on top of the scope cap, which delivers a very secure attachment. It is useful for levels, dope cards, red dots and weapon-mounted laser range finders. The low version is the more popular choice, fitting nearly all popular optics when you are not running a clip-on.

Key Specifications

• The height is 0.70 inch, with 1.52 inches from the optical center to the top of the rail on a 34mm optic.
• It uses three 1/4-20 mounting holes, giving a rigid attachment point.
• The top is a 6-slot MIL-STD-1913 rail for accessories.
• The weight is 1.5 ounces, including all hardware.
• The material is 7075 aluminum, CNC milled in America.
• The finish is Type III hardcoat black anodized, which resists wear and glare.
• Captive mounting screws keep the hardware attached while you install it.

Frequently Asked Questions

Which height should I choose? Area 419 says the low diving board is far more popular and fits nearly all popular optics when you are not using a clip-on. The standard height is for mounting behind a night vision or thermal clip-on.

Are there optics it will not fit? Area 419 says the only optic it knows of that cannot use the low diving board because of clearance is the Nightforce NX8 2.5-20.

Buy the Area 419 Tactical One-Piece Scope Mount Diving Board, Low Height

If you want to add a level, dope card or red dot to a Tactical One-Piece Scope Mount, this low-profile board does it with minimal added height. Browse more scope rings or order it from our Lubbock, Texas gun shop for fast, insured shipping.
