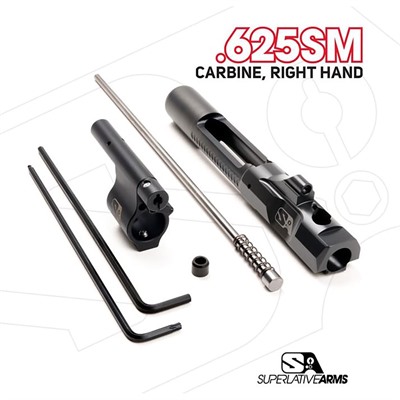

Superlative Arms Adjustable Piston System, Solid, .625-inch, Carbine Right-Hand

The Superlative Arms Adjustable Piston System is a complete short-stroke gas-piston conversion kit from Superlative Arms (brand part no. SABO-PS-RFD-C625SM) that replaces the standard direct-impingement gas tube and key with a piston operating rod, keeping hot combustion gas out of the receiver for a cleaner-running, cooler upper. This right-hand (RH) version is built for the carbine-length AR-15 gas system, the shortest of the standard gas-system lengths with a .625-inch gas-block journal. It pairs with a solid, screw-on adjustable gas block, with set screws bearing directly on the barrel for a rigid, precision lockup. Superlative Arms uses a bleed-off gas-tuning design across its gas block and piston-system lines, venting excess gas rather than restricting the port, so a shooter can dial in reliable cycling for a suppressor, subsonic loads, or reduced recoil.

Key Specifications

• It is a complete short-stroke piston conversion system that replaces the standard gas tube and key with an operating rod.
• Piston operation keeps hot combustion gas out of the receiver, for a cleaner-running, cooler upper than direct impingement.
• It is built the carbine-length AR-15 gas system, the shortest of the standard gas-system lengths.
• It is configured right-hand (RH), matching a left- or right-side operating rod layout.
• It pairs with a solid, screw-on adjustable gas block, with set screws bearing directly on the barrel for a rigid, precision lockup.
• It is machined for a .625-inch gas-block journal, matching the barrel’s actual journal diameter.
• It uses Superlative Arms’s bleed-off adjustment mechanism, venting excess gas rather than restricting the port.

Frequently Asked Questions

What does a piston system change versus direct impingement? It routes combustion gas through a piston and operating rod instead of venting it directly into the bolt carrier and receiver, which keeps the action running cleaner and cooler.

Does the RH/LH designation matter for my build? Yes, it determines which side the operating rod runs on, so confirm your upper’s configuration (standard right-side or left-side/ambidextrous) matches before ordering.

Buy the Superlative Arms Adjustable Piston System, Solid, .625-inch, Carbine Right-Hand

Order the Superlative Arms Adjustable Piston System, Solid, .625-inch, Carbine Right-Hand through our Rifle Parts selection at Schaefer Defense and we will ship it fast, fully insured, from our Lubbock, TX gun shop.
