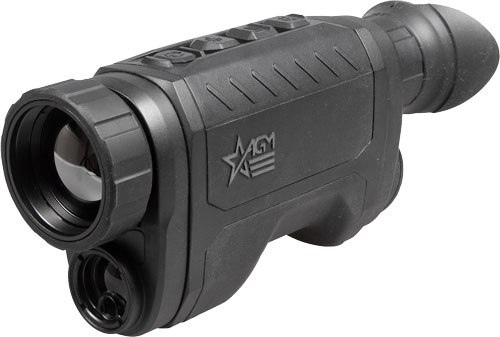

The AGM ReachIR LRF 35-640 Thermal Monocular, 640×512, 35mm Lens (AGM part no. REAC35-640-LRF) is a handheld thermal monocular from AGM Global Vision with a 640×512 thermal sensor and a 35 mm lens. AGM describes the 35-640 as a versatile handheld, with a 35 mm F1.0 lens that balances field of view and detection range. It starts at 2x base magnification with digital zoom to 16x, and the 12-micron sensor is rated at less than 20 mK sensitivity with a 50 Hz refresh rate. It suits hunters, landowners and outdoor users who need both scanning and long-range observation in a compact handheld thermal.

Key Specifications

• The thermal sensor resolution is 640×512 at a 12-micron pixel pitch, which sets how much detail the image holds on a target.
• Base magnification is 2x with digital zoom up to 16x, so you can scan wide and then zoom in on a target.
• The objective lens is 35 mm (F1.0), which sets the balance between field of view and detection range.
• The field of view is 12.5 by 10.0 degrees, or 66 by 52 feet at 100 yards, which governs how much ground you cover at a glance.
• Detection range is rated at 1,800 m/yd, the distance at which AGM says a heat signature can be picked up.
• A built-in 1,000-meter laser rangefinder measures distance without a second device.
• Battery life is up to 4.5 hours, enough for a long night out.
• Weight is 0.97 lb, easy to carry for long scans.
• The display is a 1024×768 OLED, which shows the thermal image on a crisp screen.
• One replaceable rechargeable 18650 lithium battery powers it, and a second is included for a quick swap.

Frequently Asked Questions

What is the base magnification of the ReachIR LRF 35-640? Base magnification is 2x, with digital zoom up to 16x.

How long does it run? AGM rates runtime at up to 4.5 hours on one 18650 battery, and two are included with a charger.

How far can it detect? AGM rates detection at 1,800 m/yd.
