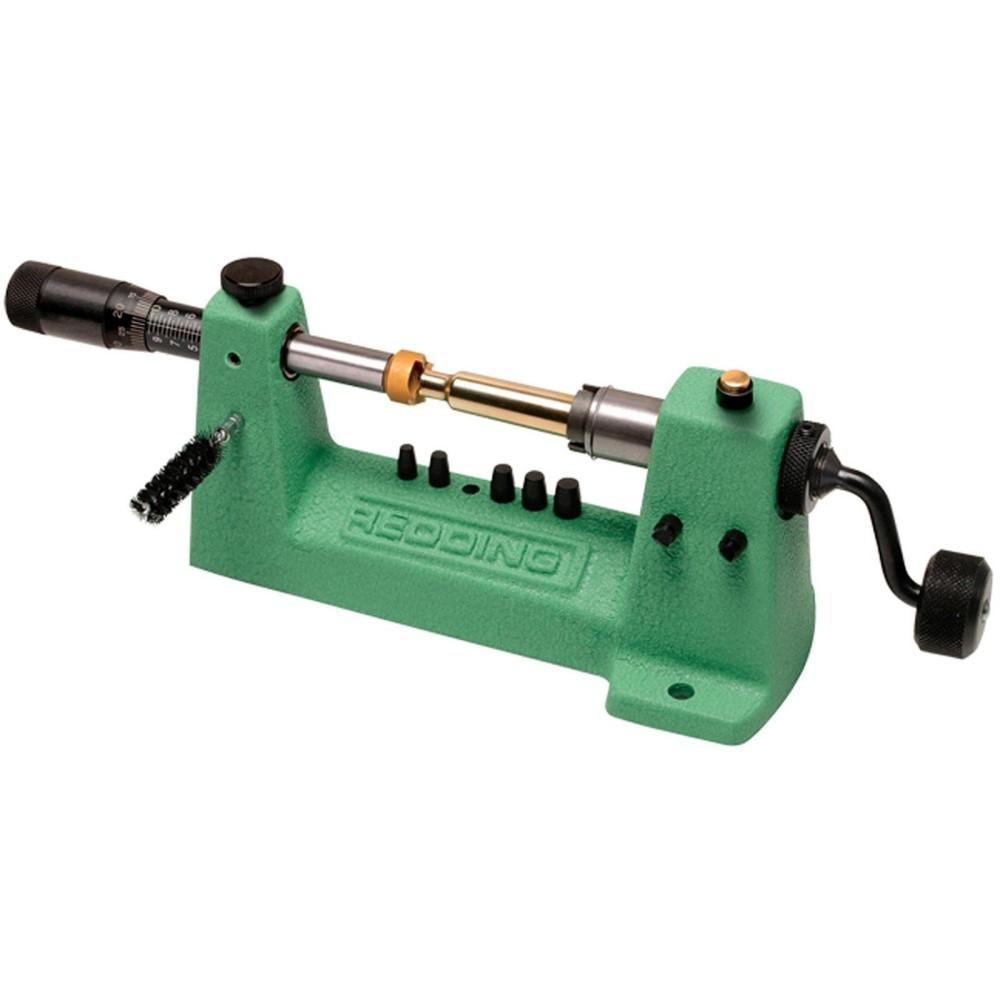

Redding Model 2400 Case Trimming Lathe

The Redding Model 2400 Case Trimming Lathe (Redding part no. 24000) trims cartridge cases on a hand-crank lathe instead of a hand-held trimmer, using a micrometer adjustment system for repeatable, precise case lengths. A push-button chuck lock speeds up loading and unloading each case, and the cast iron construction is built to hold its settings through years of bench use.

Key Specifications

• Uses a micrometer adjustment system accurate to 0.001 inch for repeatable case length.
• A push-button chuck lock speeds up loading and unloading each case.
• Handles cartridge cases up to 3.5 inches long.
• Covers calibers from .17 to .50 with the appropriate pilot.
• Built on a cast iron frame for long-term durability.
• Includes pre-drilled storage holes for the lathe’s accessories.

Frequently Asked Questions

Is this hand-crank or motorized? Hand-crank — the operator turns the crank handle to trim each case.

What’s the longest case this can trim? Cases up to 3.5 inches long.

How precise is the length adjustment? The micrometer system adjusts case length in increments as fine as 0.001 inch.

Buy the Redding Model 2400 Case Trimming Lathe

Order the Redding Model 2400 Case Trimming Lathe from our Redding lineup of reloading equipment and Schaefer Defense will ship it fast from our Lubbock, Texas gun shop.
