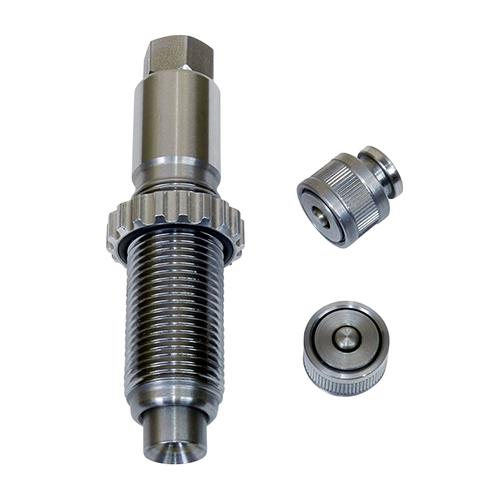

Lee Ram Swage

The Lee Ram Swage (brand part no. 91617) removes crimped primer pockets from military and law enforcement brass on any single-stage or turret press with standard 7/8-inch-14 threads in the frame. Lee Precision built it with a shell-holderless design, so the same tool swages any small or large primer pocket without swapping shell holders, and an all-steel case guide keeps cases positively centered on the push rod during the stroke. Cases like 45 ACP, 223/5.56mm, 30-06, 308/7.62×51, 9mm Luger, and law enforcement 40 S&W frequently carry crimped primer pockets from military or agency service, and swaging them properly is one of the biggest factors in reducing priming problems on a progressive press. Five 400-pound-force disc springs automatically extract the hardened steel swage punch after each stroke, and the complete set includes both large and small ram swage holder assemblies.

Key Specifications

• Fits any press with standard 7/8-inch-14 threads in the frame.
• Shell-holderless design swages any small or large primer pocket without changing parts.
• All-steel case guide keeps cases positively centered on the ram push rod.
• Spring-assisted extraction via five 400-pound-force disc springs auto-ejects the swage punch.
• Hardened steel swage punch for repeated use on crimped military and duty brass.
• Complete set includes both large and small ram swage holder assemblies.
• Installs into the press ram in seconds, with no adjustment required.
• Ships at approximately 0.795 lb per box.

Frequently Asked Questions

What is primer pocket swaging for? It removes the crimp military and law enforcement brass (like 45 ACP, 223/5.56mm, 30-06, 308, 9mm Luger, and 40 S&W) often has around the primer pocket, which reduces priming problems on a progressive press.

Do I need different shell holders for different case sizes? No, the shell-holderless design lets one tool swage both large and small primer pockets without swapping parts.
