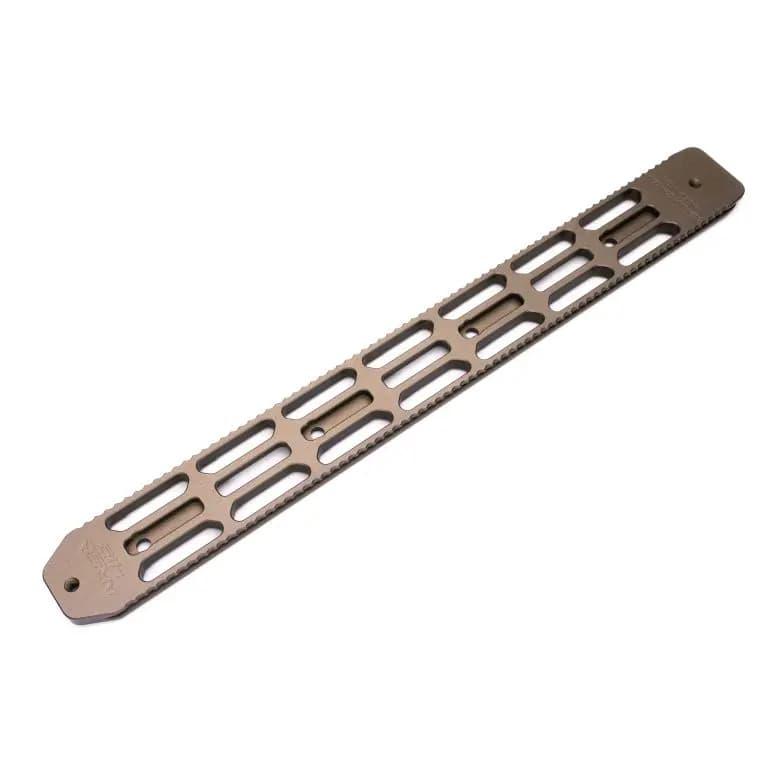

Area 419 ARCALOCK Dovetail Rail for Barrett MRAD/MK22

The Area 419 ARCALOCK Dovetail Rail (Area 419 part no. 419-ALK-MK22) is a purpose-built rail system for current-production Barrett MRAD and MK22 sniper rifles with the M-LOK forend. Rather than relying on generic clamp-on hardware, the ARCALOCK uses serrated rail sides that mechanically lock into a matching Area 419 clamp, eliminating the shifting and slop that can throw off a precision hold on a barricade or bag. It runs the full length of the MRAD forend and attaches at up to four points for a rock-solid interface between rifle and rest, making it a natural upgrade for long-range and PRS-style shooters who depend on a completely stable platform.

Key Specifications

• Built for current-production Barrett MRAD/MK22 rifles with the M-LOK forend; older circular-hole forends are not compatible.
• Serrated rail sides mechanically lock into an Area 419 clamp so no movement is possible once secured.
• Runs the full length of the MRAD forend, stopping at the end of the handguard for maximum contact area.
• Backward compatible with standard Arca-style accessories, though it only locks in place with an Area 419 clamp.
• Machined to the 1.5-inch RRS dovetail standard so lever clamps fit as expected.
• Every edge is chamfered and radiused on the machine, leaving no sharp corners to damage gear or hands.
• Attaches to the rifle at up to 4 points for added strength and stability.
• Finished in Type III hardcoat anodized FDE over 6061-T6 aluminum, made in-house in the USA.

Frequently Asked Questions

Will this fit my MRAD? Only current-production MK22/MRAD rifles with the M-LOK forend; earlier rifles with circular mounting holes are not compatible.

Does it work with any Arca clamp? It is backward compatible with standard Arca-style accessories, but the rail only mechanically locks in place with an Area 419 clamp.

Is a barricade stop included? No, the rear fixed barricade stop shown in some photos is sold separately.

Buy the Area 419 ARCALOCK Dovetail Rail for Barrett MRAD/MK22

Precision shooters who bag or barricade their MRAD for long-range work will feel the difference the moment the clamp locks down with zero play. Pick one up from Area 419 through our rifle accessories selection, and our Lubbock, Texas team will get it shipped fast.
