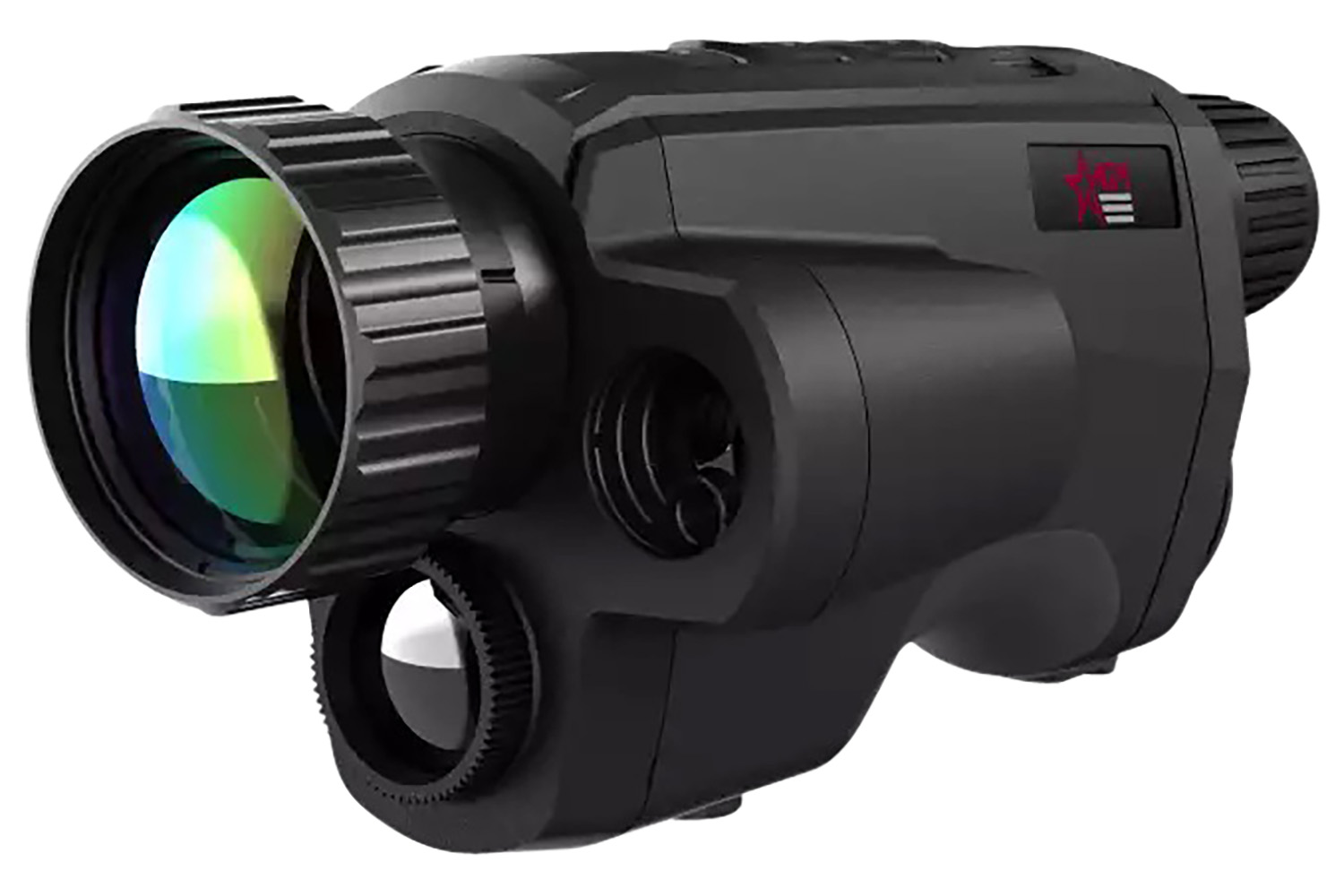

AGM Fuzion LRF TM50-640 Thermal Bi-Spectrum Monocular, Black

The AGM Fuzion LRF TM50-640 is a handheld thermal monocular that pairs a 640×512 thermal detector with a low-light optical channel, so hunters and outdoor professionals can switch between thermal, visible-light, and fusion imaging in a single bi-spectrum device. (part no. 7142510001306FL6)

Key Specifications

• A 640×512 thermal detector with 12-micron pixel pitch runs at a 50 Hz refresh rate for smooth imaging.
• Digital zoom spans 3-24x, with 1x/2x/4x/8x zoom stages available on demand.
• An integrated laser rangefinder measures the exact distance to a target.
• Focus range is rated out to 2,600 meters.
• Three selectable image modes — thermal, visible light, and fusion — adapt to different environmental conditions.
• A 1024×768 OLED display and large field-of-view eyepiece keep the image bright and detailed.
• Power comes from one rechargeable 18650 Li-ion battery, rated for up to 5 hours of continuous use.
• An external power supply connection extends operating time beyond the internal battery.
• The housing is waterproof, so the monocular keeps working through fog, rain, snow, and smoke.
• Manufactured by AGM Global Vision.

Frequently Asked Questions

Can the Fuzion LRF be mounted to a rifle? No, the Fuzion LRF is a handheld observation monocular, not a weapon-mounted sight, though it works well for scouting before a shot.

How long does the battery last? The internal 18650 Li-ion battery is rated for up to 5 hours of continuous operation, and an external power supply can extend that runtime.

What is the difference between the three image modes? Thermal mode shows heat signatures, visible-light mode shows a standard low-light image, and fusion mode blends the two for added context.
