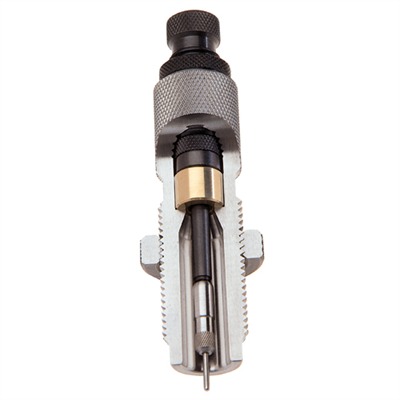

Redding 308 Winchester Small Base Type S Full-Length Bushing Die

The Redding 308 Winchester Small Base Type S Full-Length Bushing Die (brand part no. 77355) resizes 308 Winchester brass down to factory case-body dimensions while leaving neck sizing to a separate, interchangeable bushing. That two-part approach is the core of Redding’s Type S system: the die handles full-length body sizing for reliable chambering, and the bushing (sold separately, in .001 inch increments) lets a handloader dial in the exact amount of neck tension their load and brass call for. Its small base dimension resizes the case body slightly more than a standard full-length die, which is useful for brass that will be fired in a tight factory chamber, a different rifle than it was originally formed in, or a semi-automatic gas gun that needs generous chamber clearance.

Key Specifications

• It is chambered for 308 Winchester, so it resizes cases to that cartridge’s factory body dimensions.
• It is a Type S Full-Length die, meaning it uses an interchangeable neck bushing instead of a fixed neck ring.
• The neck bushing is sold separately, letting you pick your own neck-tension diameter instead of accepting a one-size-fits-all fit.
• Its small base body dimension sizes cases down slightly more than a standard full-length die, aiding chambering in tight or gas-gun actions.

Frequently Asked Questions

Does this die include a neck bushing? No. Type S bushing dies are sold without a bushing so you can choose the exact diameter for your brass and the neck tension you want. Bushings are sold separately.

What does this die do that a standard full-length die doesn’t? It sizes the case body the same way a standard full-length die does, but the neck portion accepts an interchangeable bushing, letting you fine-tune neck tension without owning multiple fixed-neck dies.

What does the Small Base designation mean on this die? Small base dies resize the case body down slightly more than a standard full-length die, which helps cases chamber reliably in tight factory chambers, other rifles, or semi-automatic actions.

Buy the Redding 308 Winchester Small Base Type S Full-Length Bushing Die

Pair this die with a bushing sized to your brass and load, and you’ll have full control over both case-body fit and neck tension on your 308 Winchester reloads. Order it from our Lubbock, Texas gun shop for fast, insured shipping, and check our reloading dies for bushings, shell holders, and the rest of the Type S lineup from Redding.
